UM3561-simple sound effek generator circuit

This is a very simple. The IC UM3561 produces four differen sound effects, the output at Pin 3 being amplified by the transistor 2N2222. A 64 ohm loudspeaker can be substituted in place of the 56 ohm resistor and 8 ohm loudspeaker.

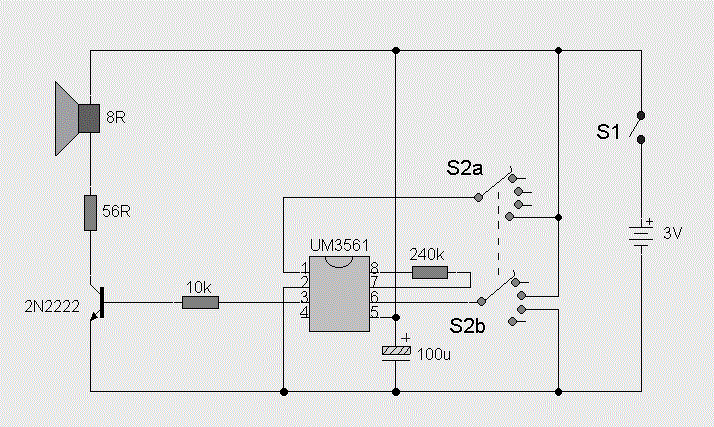

Sound Effects Generator circuitSkema Rangkaian Sound Effects Generator

The 2 pole 4 way switch controls the sound effects. Position 1 (as drawn) being a Police siren, position 2 is a fire engine sound, 3 is an ambulance and position 4 is a machine gun effect.

Note:
The IC sound generator UM3561 is now available in a kt from Maplin Electronics. Click here for the link.
